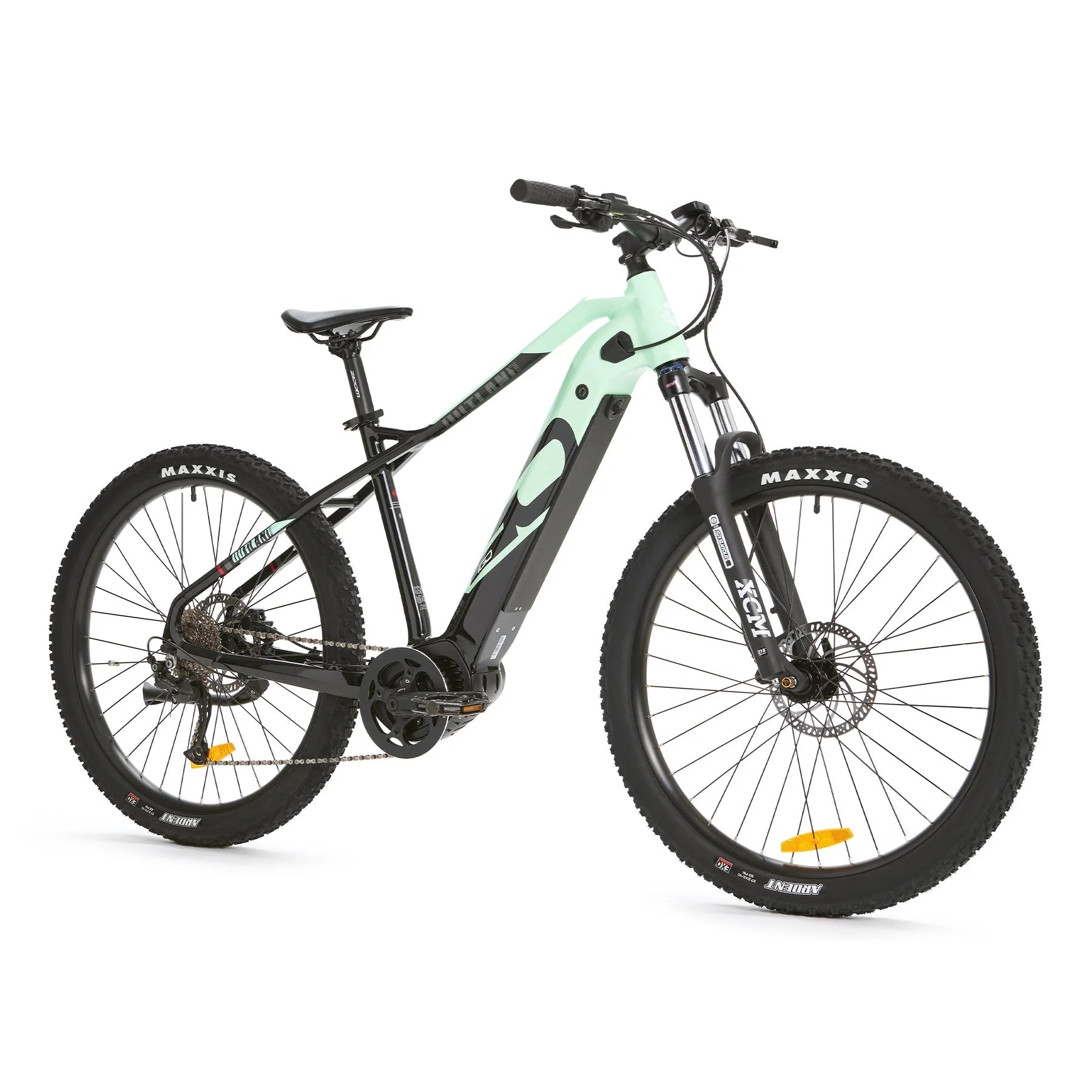

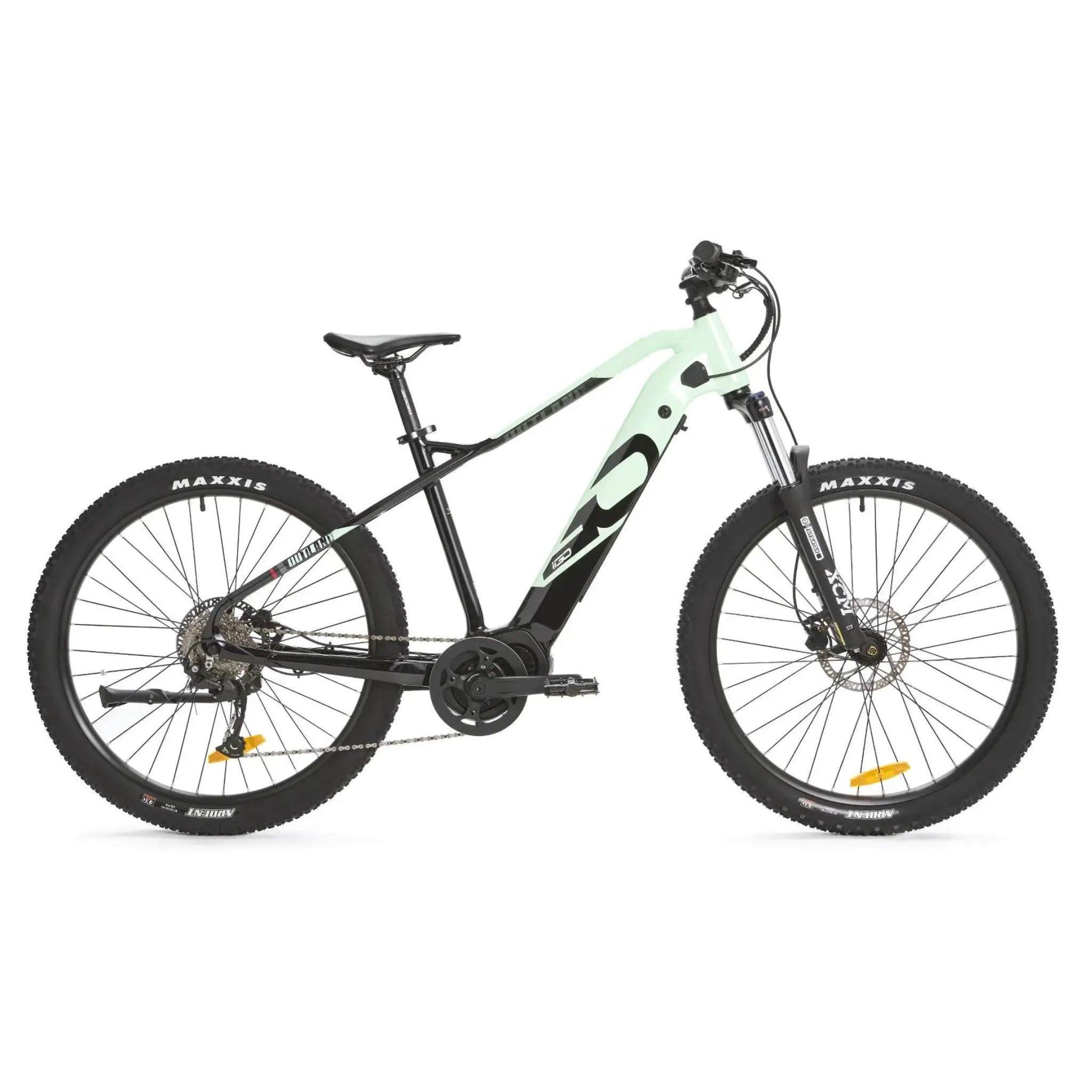

Outland XT Mountain Ebike
Product description
Important notice: Due to current New South Wales (NSW) regulations, this eBike is not available for sale or delivery within NSW.
Before using this vehicle, check the applicable local laws relating to your intended use of the vehicle on roads and road related areas.
Learn more about Australian e-bike rules
A HARDTAIL WITH EXHILARATING POWER
Flattens Hills Effortlessly with Mighty 130Nm Torque
Key Features
Motor
130Nm HIGH TORQUE, 500W Mid-Drive Powerhouse.
Flattens steep hills effortlessly. (restricted to 250w by default)
Battery
SAMSUNG POWER CELL 720Wh Capacity.
Premium 21700 cells for longer life and consistent power output.
Top Speed
Limited to 25km/h (Unlock to 45km/h)
Range
REAL-WORLD RANGE Tested up to 129km (Eco) Ride further on a single charge.Varies on Ride Use
Max Load
125kg
Pas Sensor
NATURAL RIDE FEEL
Advanced Torque Sensor. Matches your pedal power instantly.
RIDE LONGER, PUSH FURTHER

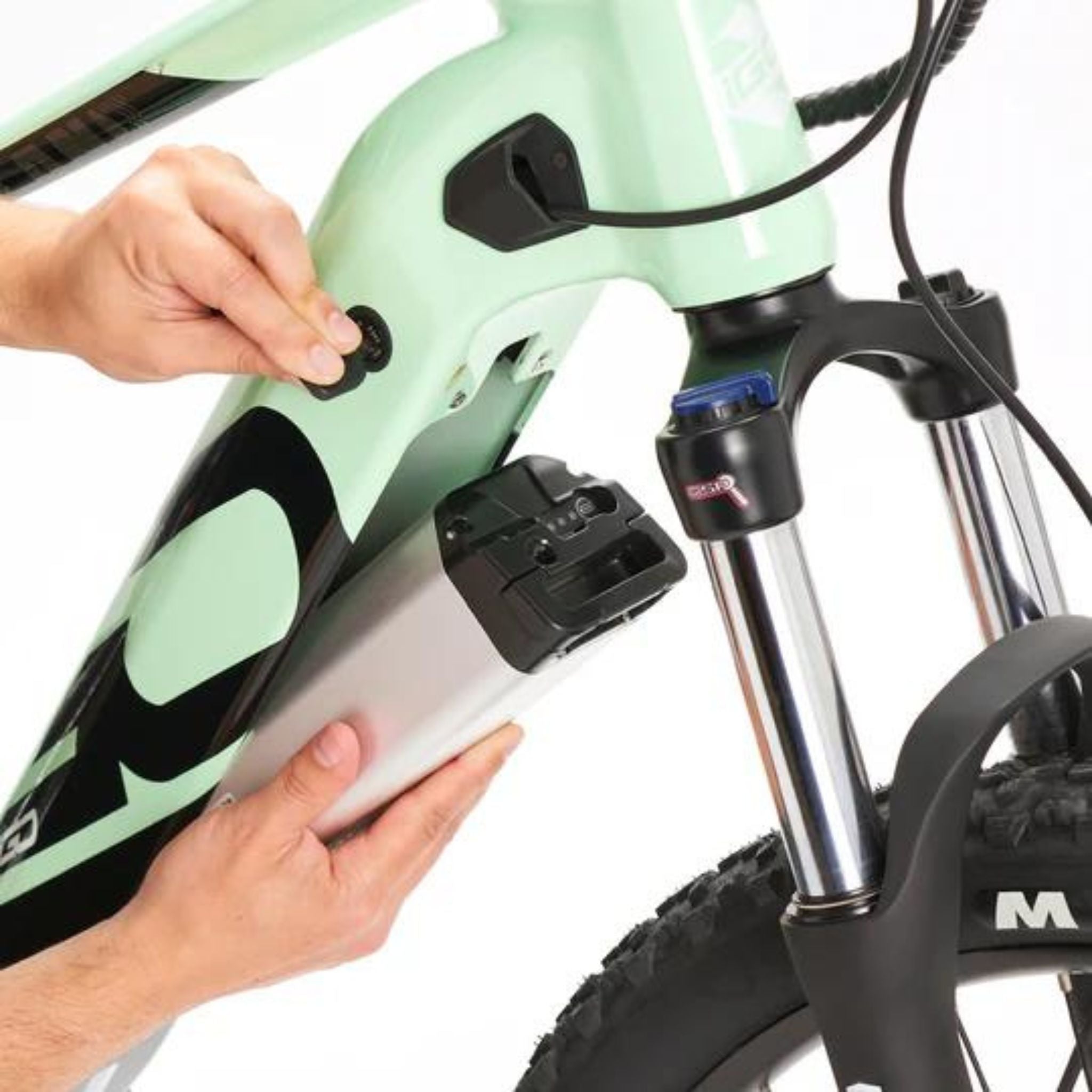

RANGE ANXIETY IS DEAD 720Wh Samsung Power. Forget checking your battery gauge. With a real-world range tested up to 129km (Eco mode), you can spend all day on the trails. Removable in seconds for easy charging at home or the office.
Adapt to Every Trail
TWO BIKES IN ONE Road Legal & Trail Ready. Switch instantly between modes. Use the 250W setting for a legal, relaxing commute to work. Hit the dirt? Unlock the full 500W / 45km/h power to dominate private trails.
BUILT TOUGH FOR SERIOUS RIDERS

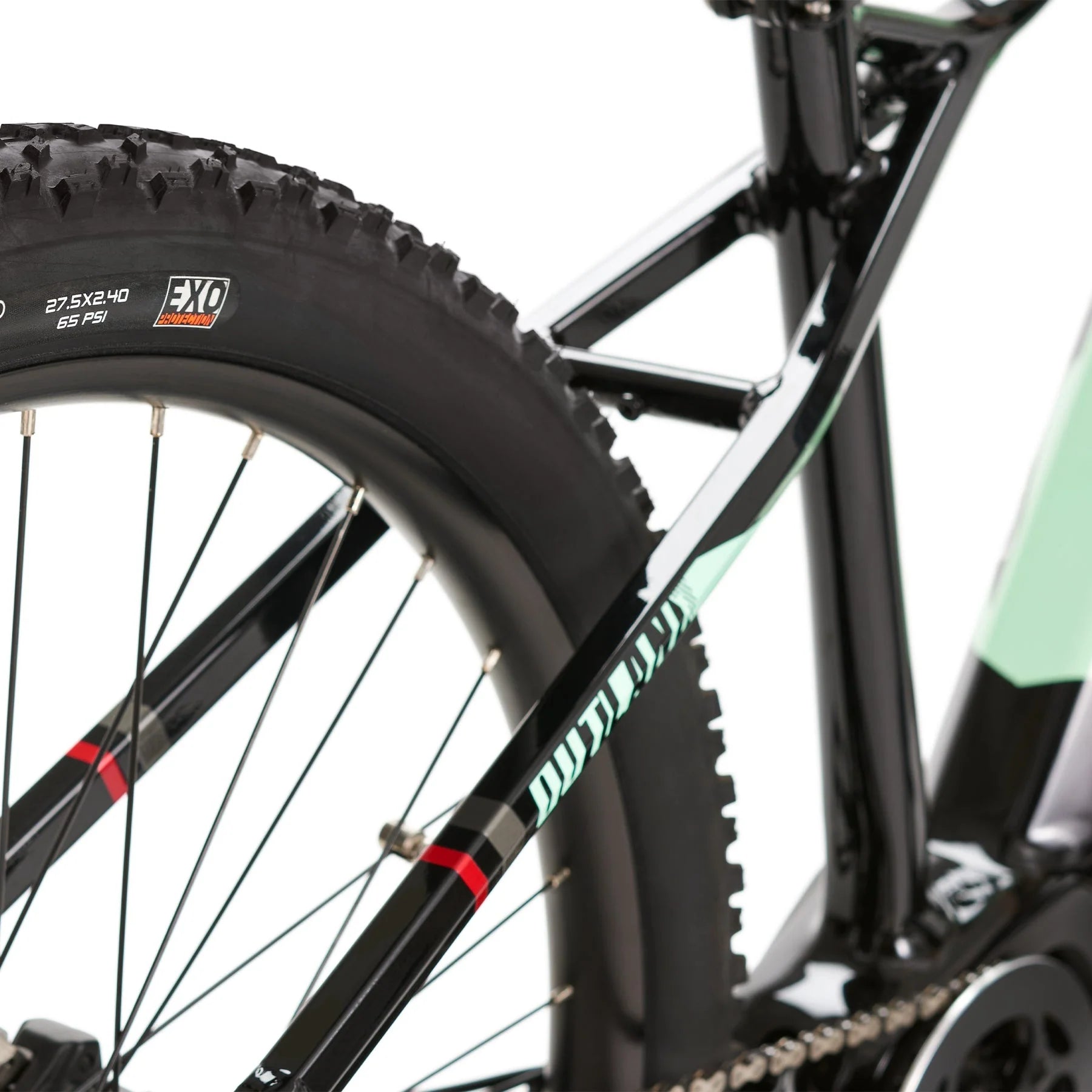

BUILT TO TAKE A BEATING Hydroformed Alloy Frame. This isn't a toy. The Outland XT features a rigid, hydroformed aluminum frame designed to handle rocks, drops, and high-speed descents without flexing. It tracks straight and true, giving you the confidence to push harder.
CONQUER EVERY TRAIL
Designed for Australian conditions. The Outland XT combines a slack head angle for stability on descents with a punchy climbing position. Whether it’s fire trails or technical single-track, you are always in control.
UNMATCHED POWER AND PRECISION

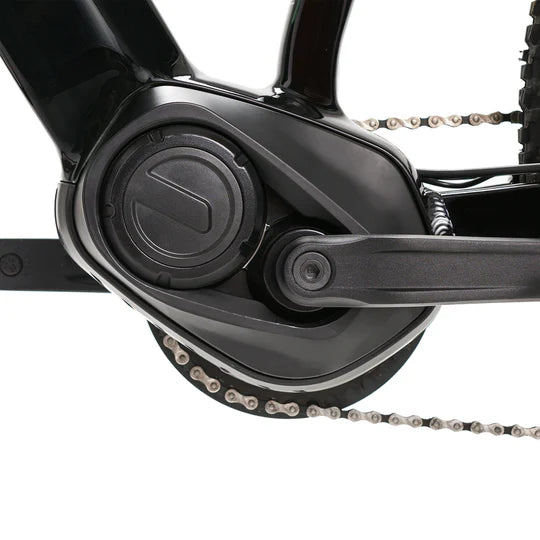

130Nm OF CLIMBING FURY The Ananda Mid-Drive Advantage. Most e-bikes have 60Nm of torque. The Outland XT has 130Nm. This massive difference means you don't just "tackle" hills—you flatten them. The intelligent TorqueFlow sensor delivers this power instantly, making steep inclines feel like flat ground.
Specifications
Frame
Frame
Rust-free modular aluminium alloy
Fork
SR Suntour XCM 34 Boost, 120mm travel with lockout
Rear Rack
Quick-fold comfort stem
Fenders
Not included

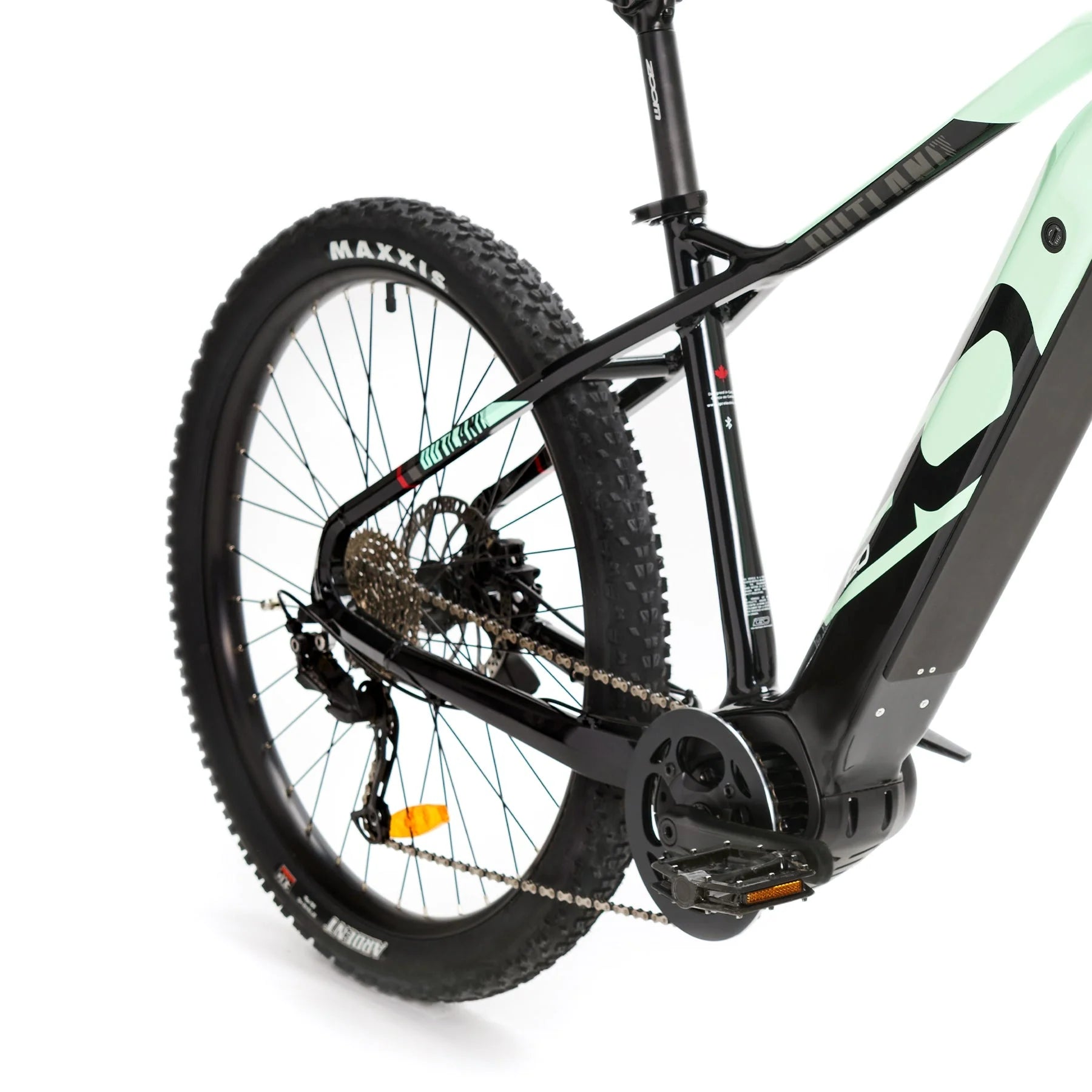

Drivetrain
Motor
ANANDA M100 mid-drive motor, 130Nm torque
Battery
48V 15Ah Samsung premium battery
PAS Sensor
advanced torque sensor
Shifter
Shimano Alivio 9-speed Rapidfire Plus
Gearing
34T chainring with narrow-wide teeth
Freewheel
Shimano Alivio 9-speed, 11–36T
Derailleur
Shimano Alivio 9-speed rear derailleur
Chain
KMC E9-S
Brakes
Brakes
Tektro hydraulic disc brakes, 180mm rotors
Wheels
Tyres
MAXXIS M315 EXO 27.5" x 2.4"
Rims
27.5" dual-wall alloy rims, black
Spokes
Stainless steel spokes

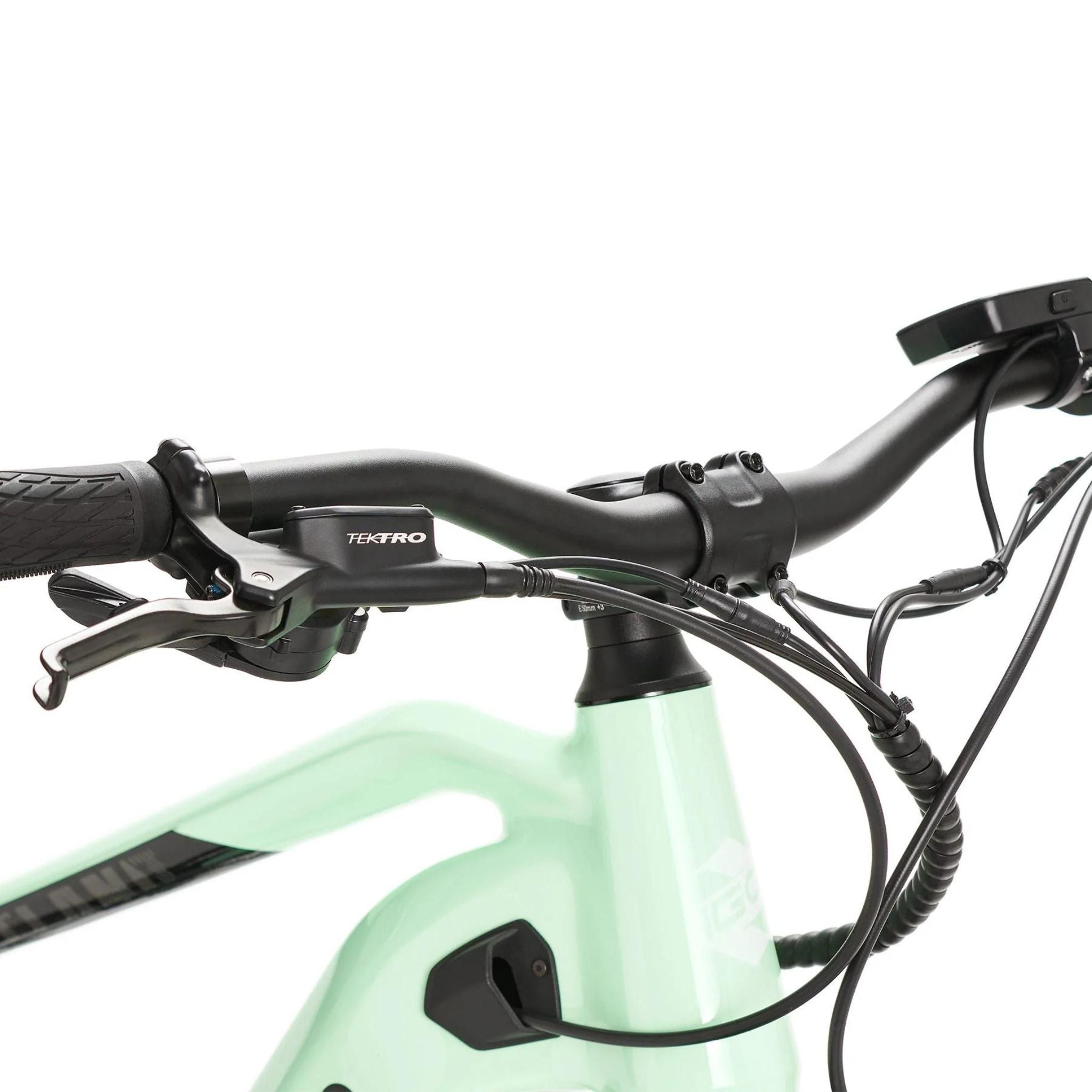

Cockpit
Display
2" TFT LCD display
Throttle
Thumb throttle included, not pre-installed
Handlebar
720mm width, 28mm rise, 31.8mm diameter
Grips
VELO rubber palm rest grips, 132mm
Saddle
SELLE ROYAL Viento
Seat Post
EXA dropper post, 150mm travel. Adjust saddle height instantly from the handlebars.
Pedals
Alloy platform pedals with high-grip pins for off-road control
Accessories
Front Light
Not included
Rear Light
Not included
Charger
48V 2A fast-charging
Tool kit
Manual
Optional Accessories
Fenders

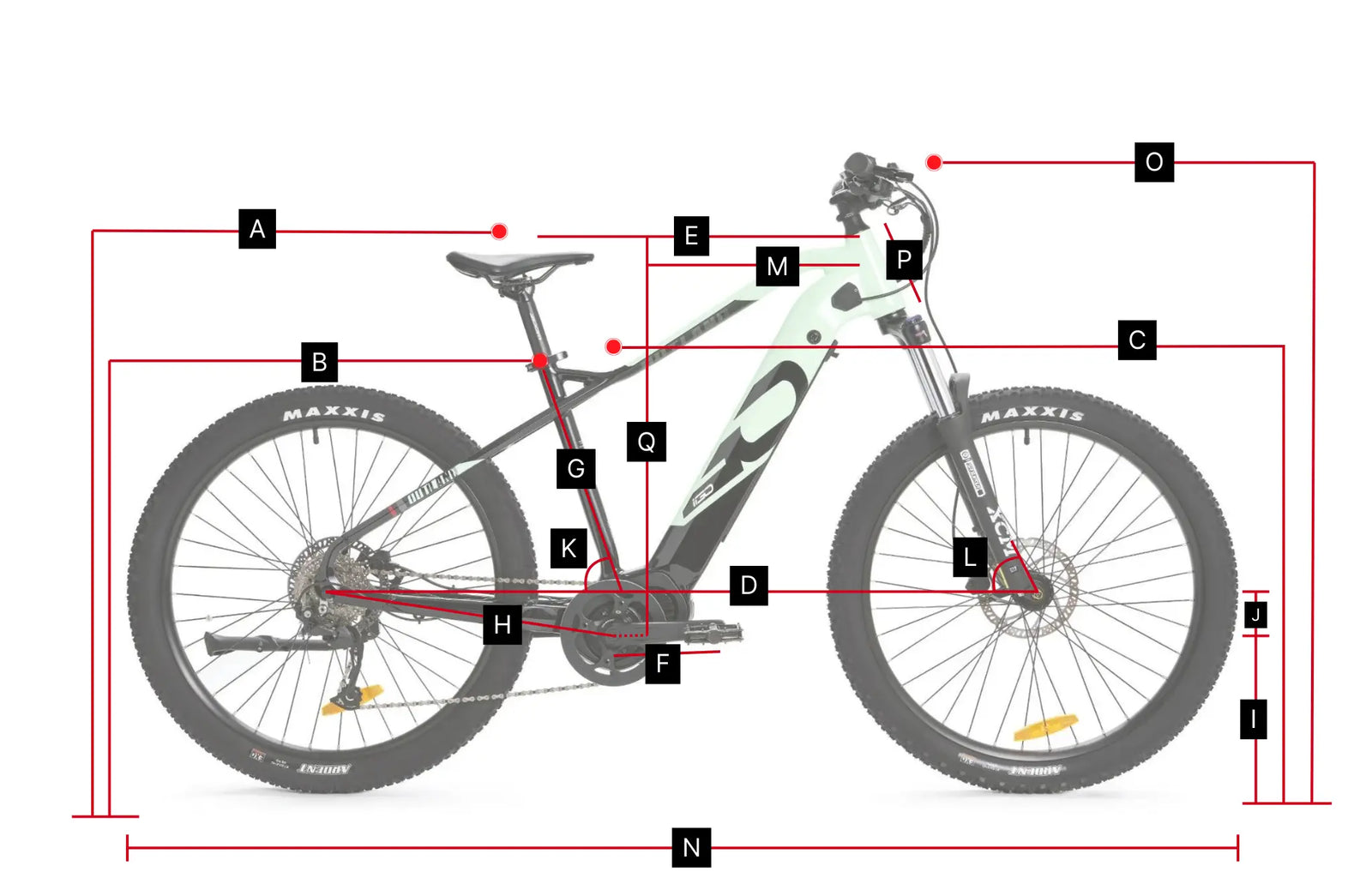

Dimensions
| Measurements | Dimension |
|---|---|
| Bike Weight (No Battery) | 27.4kg |
| Bike Weight (With Battery) | 30.9kg |
| Weight Capacity | 125kg |
| Rider Height Range | 5'3"-6'4" |
| Handlebar Width | 720mm |
| A - Maximum Seat Height | 1040mm |
| B - Minimum Seat Height | 890mm |
| C - Stand-over Height | 770mm |
| D - Wheelbase | 1225mm |
| E - Effective Top Tube Length | 620mm |
| F - Crank Length | 170mm |
| G - Seat Tube Length | 480mm |
| H - Chainstay Length | 495mm |
| I - Bottom Bracket height | 325mm |
| J - Bottom Bracket Drop | 29mm |
| K - Seat Tube Angle | 71° |
| L - Head tube angle | 65.8° |
| M - Reach | 435mm |
| N - Total Length | 1920mm |
| O - Handlebar Height | 1120mm |
| P - Head Tube Length | 150mm |
| Q - Stack | 655mm |
FAQ
Have questions about the Outland XT mountain ebike? Below you’ll find answers about range, battery options, folded size, rider suitability, accessories, throttle use, assembly, servicing, and everyday riding.
Can I unlock the speed limit for off-road use?
Yes. The Outland XT ships restricted to 25km/h to comply with Australian EN15194 road laws. However, the motor is capable of 45km/h. For use on private property or off-road trails, you can unlock the full speed and 500W power via the display settings.
Note: We recommend checking local regulations before riding unlocked on public land.
Does it come with a throttle?
Yes, a Thumb Throttle Kit is included in the box for free. You can choose to install it for "power on demand" (ideal for off-road starts) or leave it off to keep the bike strictly pedal-assist for road compliance.
What is the real battery range?
Independent tests by Electric Bike Report achieved up to 129km on a single charge in Eco mode, thanks to the massive Samsung 720Wh battery. Even in high-power "Sport" mode, you can expect 50-70km of heavy trail riding. This is significantly more than standard 500Wh e-bike batteries.
Why choose this Mid-Drive over a cheaper Hub-Motor bike?
Two words:Torque and Balance.
Climbing: The Outland XT produces 130Nm of torque (vs. ~60Nm on hub motors), meaning it climbs steep hills without stalling.
Handling: The motor is in the center of the bike, not the rear wheel, giving you perfect weight distribution for jumps and technical trails.
Feel: The advanced torque sensor measures your pedaling pressure instantly, so the power feels like you are superhuman, rather than just being pushed along.
Will this bike fit my height?
The Outland XT is designed to fit riders from 160cm (5'3") to 193cm (6'4"). It comes standard with a Dropper Seat Post, allowing you to adjust the saddle height instantly with a handlebar lever—perfect for swapping riders or dropping the seat for safety on steep descents.
What PSI range is recommended for achieving optimal performance when riding the Outland XT?
The recommended PSI range for the MAXXIS M315 EXO 27.5" x 2.4" tire is typically between 30 to 50 PSI. However, the optimal PSI can vary based on riding conditions, rider weight, and personal preference:
30-35 PSI: For better traction and control on rough or loose terrain, like trails and technical descents.
40-50 PSI: For smoother, harder surfaces or when aiming for more speed and less rolling resistance.
